Product Details

Tech specs
Processor
Two 4th Generation Intel® Xeon® Scalable processor with up to 56 cores per processor

Cooling options
Air cooling for Processors
Liquid Assisted Air Cooling for GPU. Note: No facility water to rack required.

Operating System
Canonical® Ubuntu® Server LTS
Red Hat® Enterprise Linux

Chipset
Intel® C741 chipset

Accelerators
4 NVIDIA® HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA® NVLink technology

Memory*
DIMM Speed
Up to 4800 MT/s

Memory Type
RDIMM

Memory Module Slots
32 DDR5 DIMM slots

Maximum RAM
RDIMM 4 TB max


Storage
Front Bays
Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB

Storage Controllers
Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or USB

Software RAID
S160
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish®
iDRAC Service Module

Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter®
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
RedHat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Power Supplies
2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap

Fans
Up to 6 Standard (STD) fans installed in mid tray
Up to 5 High performance (HPR) gold grade fans installed on the front of the system
All are hot swap fans
Ports
Network Options
1 x OCP 3.0 (optional)
2 x 1GbE LOM (optional)

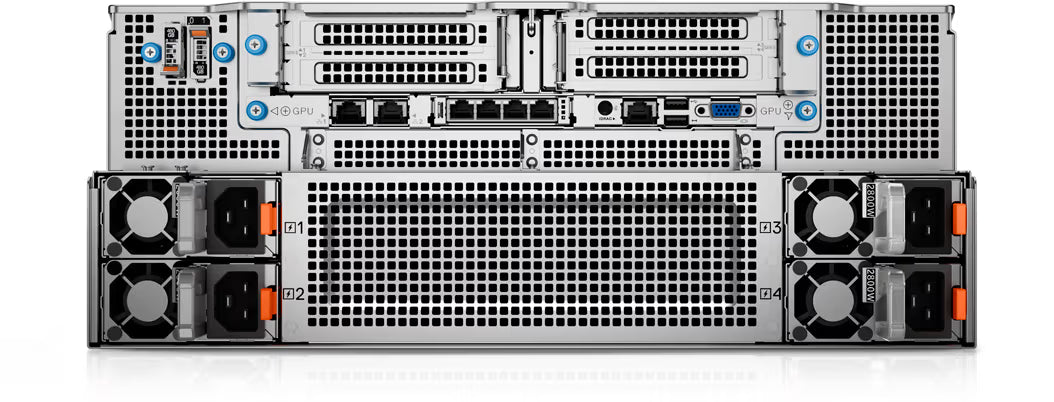

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x RJ45 iDRAC9 ethernet port

Slots
PCIe
2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)

Bezel
Optional LCD bezel or security bezel

Form Factor
4U rack server

Dimensions & Weight
Height
6.86 inches (174.3 mm)

Width
18.97 inches (481.91 mm)

Depth
35.48 inches (901.4 mm) with bezel
34.07 inches (865.54 mm) without bezel

Weight
135.36 pounds (61.4 kg)

Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region

Features & Design

Driving energy efficiencies in large-scale data centres

The Dell PowerEdge XE8640 is designed to maximise value and efficiency in your data centre.

Fits your evolving AI acceleration needs

Systems management and security solutions

OpenManage systems management

Intelligent automation

Built-in security
