Product Details

Tech specs
Processor
1 x 4th Generation Intel Xeon Scalable processor or 1 x 4th Generation Intel Xeon Edge Enchanced processor (vRAN boost) with up to 32 cores

Operating System
RedHat® Enterprise Linux
SUSE Linux Enterprise Server
VMware® ESXi®
Wind River

Accelerators
NA

Memory
DIMM Speed
Up to 4800 MT/s

Memory Type
RDIMM

Memory Module Slots
8 x DDR5 DIMM slots

Maximum RAM
RDIMM 512 GB max

Storage
NA

Storage Controllers
Internal Boot
BOSS N1 with 2 x 2280 NVMe SSDs

Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish®
iDRAC Service Module

Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish®
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager

Power Supplies
1800 W Titanium 200—240 VAC or 240 HVDC hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC hot swap redundant
1400W DC/ -48 — (-60) V
1100W DC/ -48-(-60) V
800W DC/ -48-(-60) V

Ports
Network Options
2 x 25 GbE SFP 28 LOM connectors (optional)

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
2 x USB 3.0
1 x Serial port
1 x Mini-DisplayPort
1 x RJ45 iDRAC9 ethernet port
1 x RJ45 Alert\Dry contact input connector

Internal Ports
N/A

Slots
PCIe
1 PCIe slot: 1 x16 FHHL (up to 45W) Gen5 slot

Chassis
XR8000r

Bezel
No bezel

Form Factor
1U rack server

Dimensions & Weight
Height
41.25 mm (1.62 in.)

Width
184.8 mm (7.27 in.)

Depth
433.5 mm (17.06 in.)

Weight
5.36 kg (11.83 lb.)

Features & Design

Driving energy efficiencies in large-scale data centres

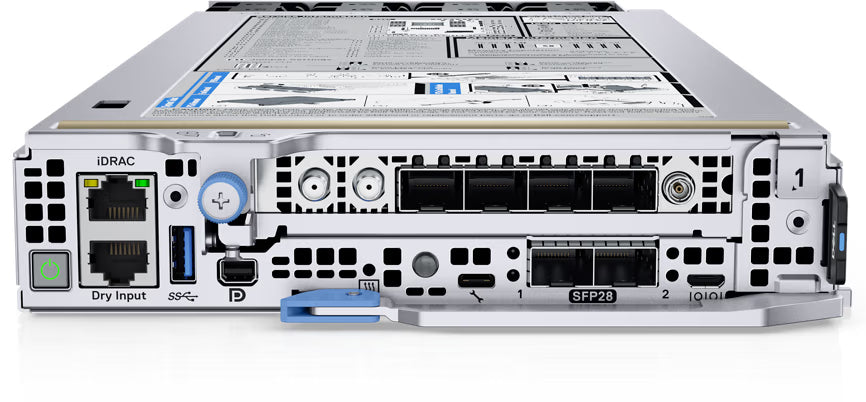

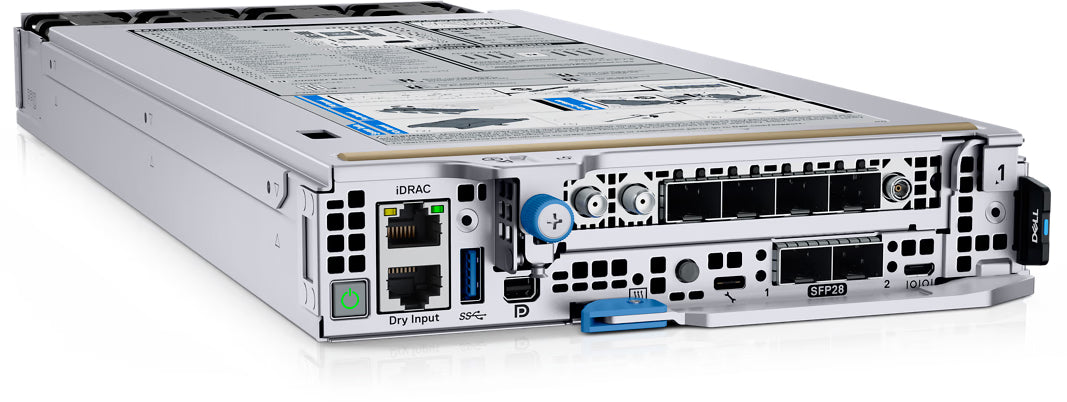

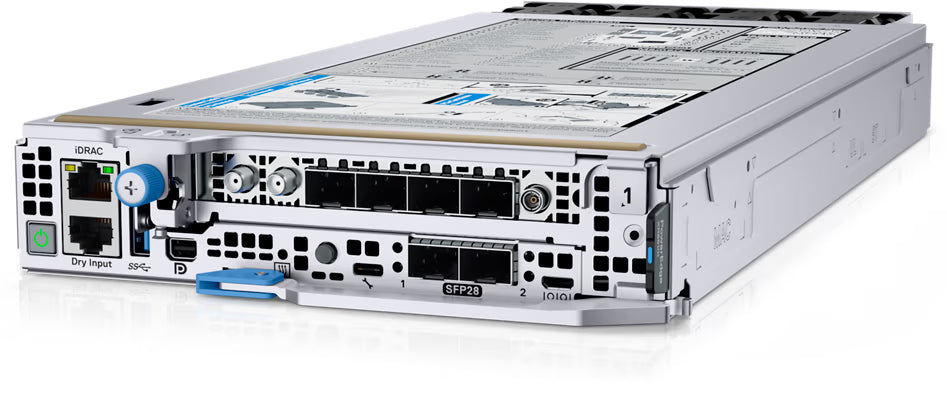

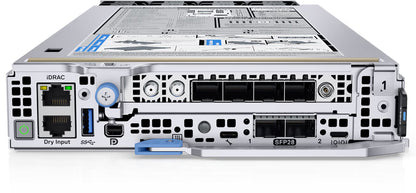

The Dell PowerEdge XR8610t is designed to maximise value and efficiency in your data centre.

Fits your evolving AI acceleration needs

Systems management and security solutions

OpenManage systems management

Intelligent automation

Built-in security
