Contact Us for Pricing

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Product Details

Tech specs
Processor
One 4th Generation Intel® Xeon® Scalable processor with up to 32 cores per processor

Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset
Intel® C741 chipset

Accelerators
Up to 2 x 75 W (single-width, full-height, half-length)

Memory
DIMM Speed
Up to 4800 MT/s

Memory Type
RDIMM

Memory Module Slots
Eight DDR5 DIMM slots with ECC

Maximum RAM
RDIMM 1 TB max

Storage
Front Bays
Up to 4 x 2.5-inch SATA, SAS, or NVMe SSD max 30.72 TB

Storage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H355, HBA355i

External Controllers
HBA355e

Software RAID
S160

Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs

Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter and vRealize Operations Manager

Power Supplies
1800 W Platinum 200—240 VAC or 240 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W LVDC -48 — (-60) VDC, hot swap redundant
800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
800 W LVDC -48 — (-60) VDC, hot swap redundant

Fans
Up to 6 standard cold swap fans

Cooling options
Air cooling

Ports
Network Options
1 x OCP 3.0 (optional)
4 x 25 GbE SFP+ LOM

Front Ports
Rear Accessed Configuration
1 x iDRAC Direct (Micro-AB USB 2.0) port
1 x USB 2.0
Front Accessed Configuration
1 x iDRAC Direct (Micro-AB USB 2.0) port
1 x iDRAC dedicated port
1 x USB 3.0
1 x Serial (Micro-AB USB 2.0-compliant)
1 x Mini-Display Port
4 x 25 GbE SFP+ LOM
1 x RJ45 for dry contact

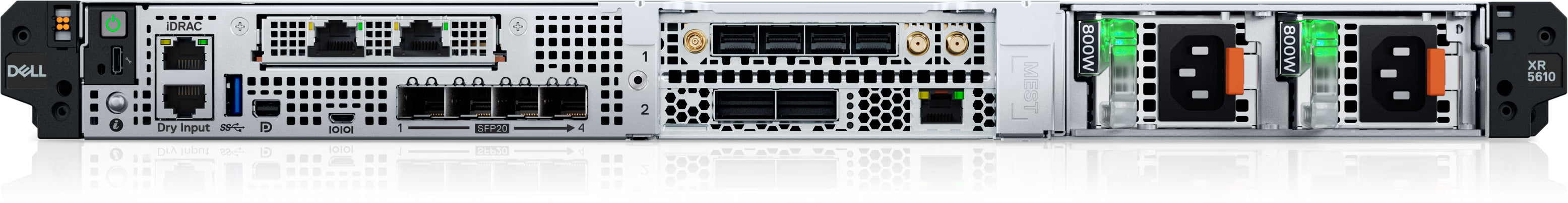

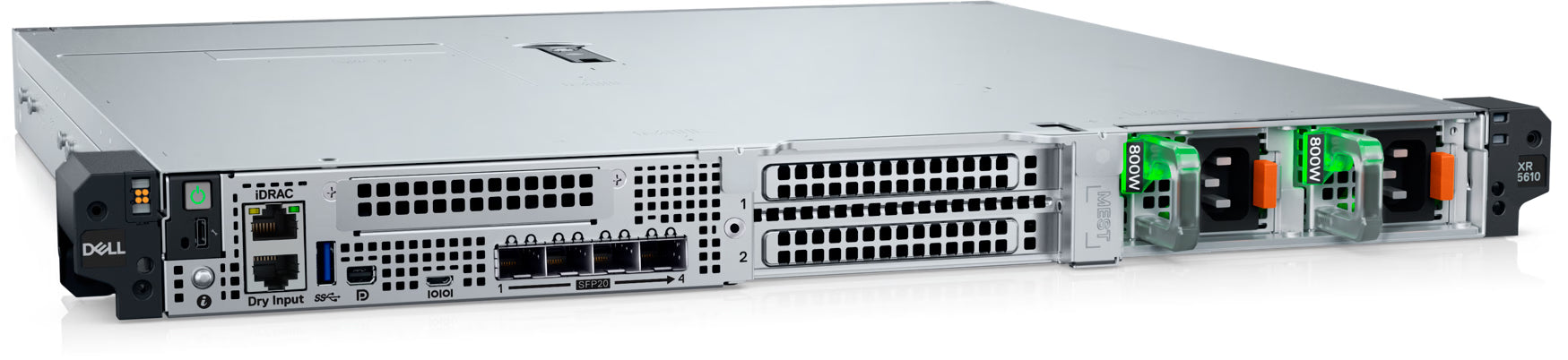

Rear Ports
Rear Accessed Configuration
1 x USB 3.0
1 x iDRAC dedicated port
1 x Serial port (Micro-AB USB 2.0-compliant)
1 x Mini-Display Port
1 x RJ45 for dry contact
4 x 25 GbE SFP+ LOM
Front Accessed Configuration
N/A

Internal Ports
N/A
Slots
PCIe
Up to 2 PCIe slots (2 x16 Gen5)

Video Card
N/A

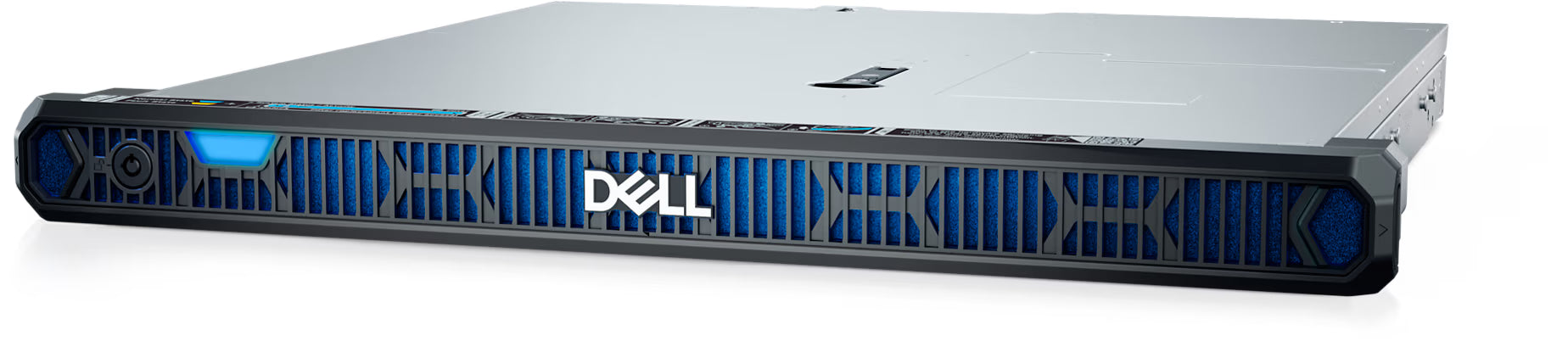

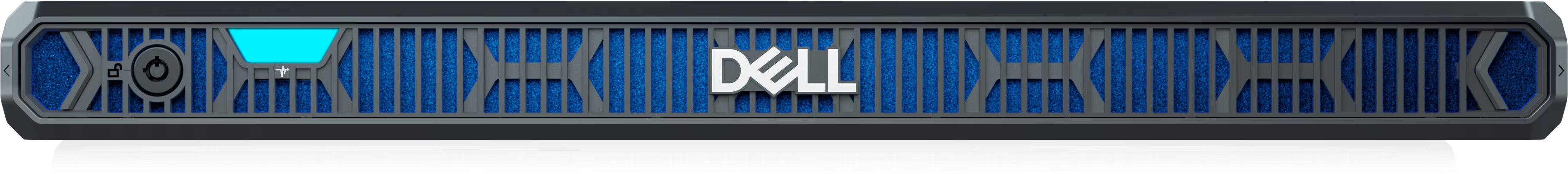

Bezel
Optional bezel or security bezel with dust filter

Form Factor
1U rack server

Dimensions & Weight
Rear Accessed configuration
Height:
42.8 mm (1.68 inches)

Width:
482.6 mm (19 inches)

Depth:
With Bezel: 487.7 mm (19.2 inches)
No Bezel: 463 mm (18.22 inches)

Weight:
Max 11.27 kg (24.84 pounds)

Front Accessed configuration
Height:
42.8 mm (1.68 inches)

Width:
482.6 mm (19 inches)

Depth:
With Bezel: 566.05 mm (22.28 inches)
No Bezel: 472.7 mm (18.61 inches)

Weight:
Max 11.37 kg (25.06 pounds)

Rack Support
Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 - 750 mm. These rails also support optional CMA and SRB for 2-post racks.

Sliding, stab-in rails for rugged transit case (MIL 901E certified in (Pelican Custom Rack 25-036329-01) with rack post distance of 425 - 558 mm.

Features & Design

Driving energy efficiencies in large-scale data centres

The Dell PowerEdge XR5610 is designed to maximise value and efficiency in your data centre.

Fits your evolving AI acceleration needs

Systems management and security solutions

OpenManage systems management

Intelligent automation

Built-in security
